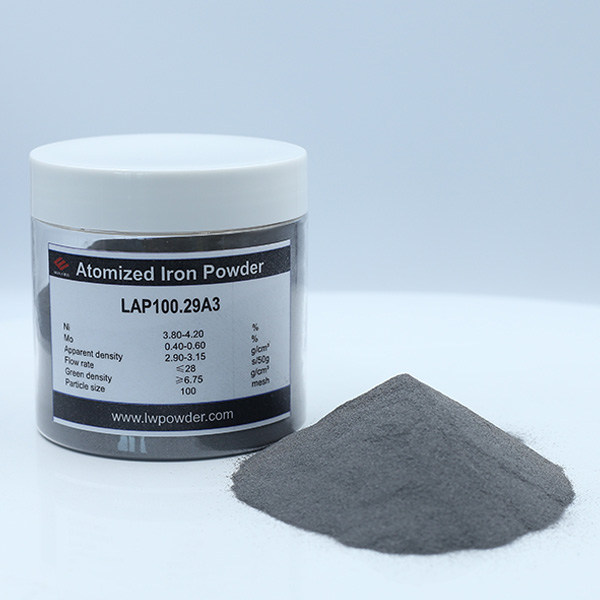

LAP100.29A3:LAP100.29A3 is mainly used for production of PM forging parts and high strength sintered machine
parts.
Pre-alloyed powders are water atomized steel powders with 0.85% Mo and 1.5% Mo often used as-sintered with additions of copper or nickel to make it possible for good surface hardening etc.
Specification
Chemical Properties（%） | Unit | Specification | |
| Min | Max | ||
C | % | 0.01 | |
| Si | % | 0.05 | |
| Mn | % | 0.15 | |
| P | % | 0.020 | |
| S | % | 0.015 | |
| Ni | % | 3.80 | 4.20 |
| Mo | % | 0.40 | 0.60 |
| Physical Properties | |||
| Apparent density | g/cm3 | 2.90 | 3.15 |
| Flow rate | s/50g | 28 | |
| Green density 600Mpa | g/cm3 | 6.75 | |
| Particle size distribution（%） | |||
| 180-212um | % | 1 | |
| 150-180um | % | 10 | |
| 45-150um | % | ||
| 45-150um | % | 10 | 30 |

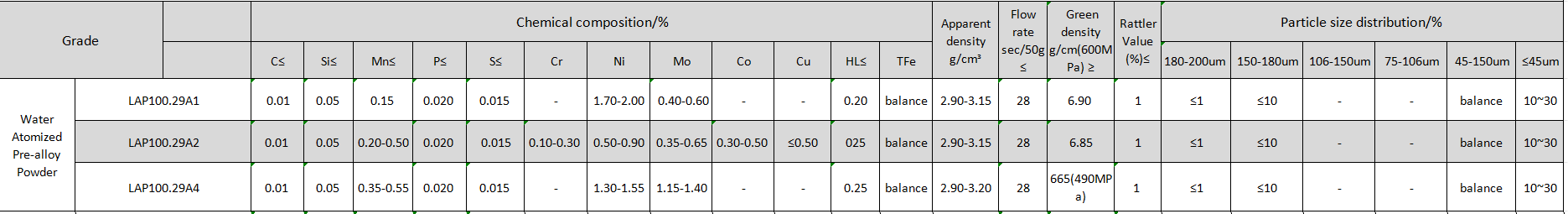

Specifications of other Ni-Mo Alloy Powders
Product Packing
25kg/bag, 1000kg/bag, the package can be customized by buyer's requirements.
Application
This type of metal powder can be used for the material of powder metallurgy sinter component parts.
