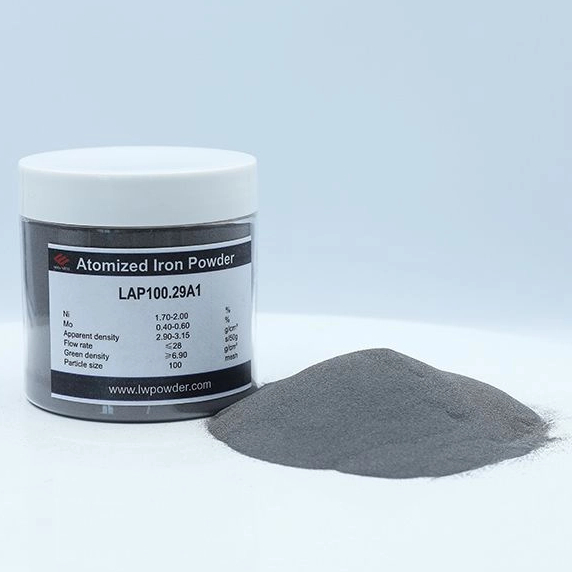

LAP100.29A1: Add Ni(1.70-2.00%)and Mo(0.40-0.60%)into the molten steel,which enables all alloy elements fully integrated into the molten steel The powder has high strength and good heat treatment performance This type of power is mainly used for production of forging parts and high strength sintered parts.
Advantages：
·The alloy elements distribute uniformly without segregation, which has uniform sinteredphysical and chemical properties.
·By adding Mo and Ni can improve the strength, toughness, wear resistance and hardenability of sintered parts.
·Suitable for production of uniform sintered parts;high strength, heat treated parts.
Specification
Chemical Properties（%） | Unit | Specification | |
| Min | Max | ||
| C | % | 0.01 | |
| Si | % | 0.05 | |
| Mn | % | 0.15 | |
| P | % | 0.02 | |
| S | % | 0.015 | |
| Ni | % | 1.70 | 2.00 |
| Mo | % | 0.40 | 0.60 |
| H2-Loss | % | 0.20 | |
| Physical Properties | |||
| Apparent density | g/cm3 | 2.90 | 3.15 |
| Flow rate | s/50g | 28 | |
| Green density 600Mpa | g/cm3 | 6.90 | |
| Particle size distribution（%） | |||
| 180-212um | % | 1 | |
| 150-180um | % | 10 | |
| 45-150um | % | ||
| -45um | % | 10 | 30 |

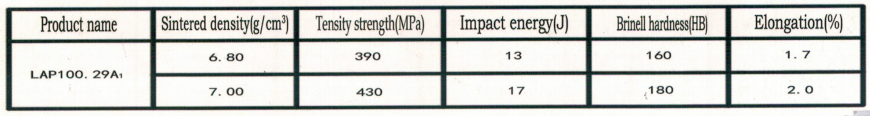

Properties
LAP100.29A1+0.80%C +0.80%Zn-st, condition: temperature1125℃, sintering time 30min.

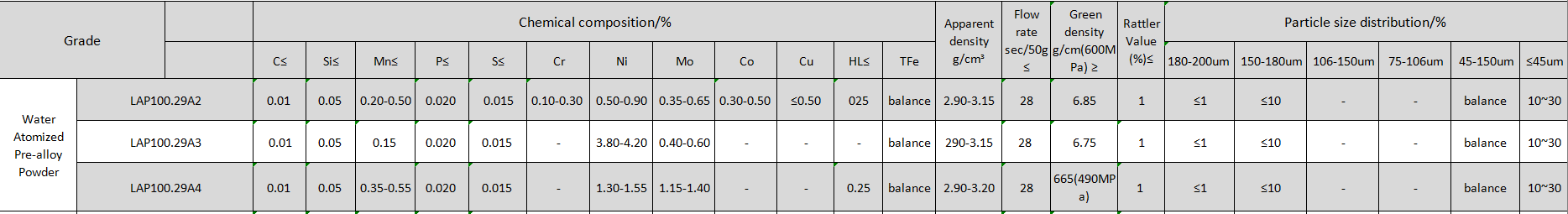

Specifications of other Ni-Mo Alloy Powders
Product Packing
25kg/bag, 1000kg/bag, the package can be customized by buyer's requirements.
Application
This type of metal powder can be used for the material of powder metallurgy sinter component parts.
