LAP100.29D2: Add Ni(3.80-4.20%)and Cu(1.60-1.90%)into the base powder(LAP100.29Mo1) mix uniformly.Due to its high Ni content, it is suitable for production of high hardcnability and high strength parts.
Advantages：
·The powder has high compressibility and high strength.
·No segregation enables the stability of product's sintered size.
·The increase of Ni content improves the hardenability of the material.
·Suitable for the production of large parts which need heat treatment.
Specification
| Chemical Properties（%） | Unit | Specification | |
| Min | Max | ||
| C | % | 0.015 | |
| Si | % | 0.05 | |
| Mn | % | 0.15 | |
| p | % | 0.015 | |
| S | % | 0.015 | |
| Ni | % | 3.80 | 4.20 |
| Mo | % | 0.50 | 0.70 |
| Cu | % | 1.60 | 1.90 |
| H2-Loss | % | 0.15 | |
| Physical Properties | |||
| Apparent density | g/cm3 | 3.00 | 3.30 |
| Flow rate | s/50g | 30.00 | |
| Green density 600Mpa | g/cm3 | 7.06 | |
| Particle size distribution（%） | |||
| 180-212um | % | 1 | |
| 150-180um | % | 10 | |
| 45-150um | % | ||
| -45um | % | 10 | 30 |

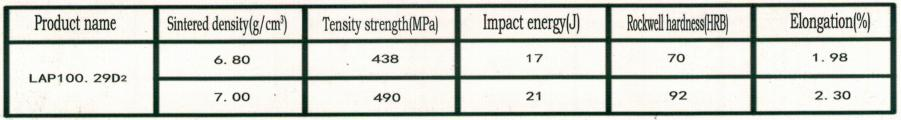

Properties
LAP100.29D2+0.3%C+0.6%Zn-st, condition: temperature1120℃, sintering time 30min.

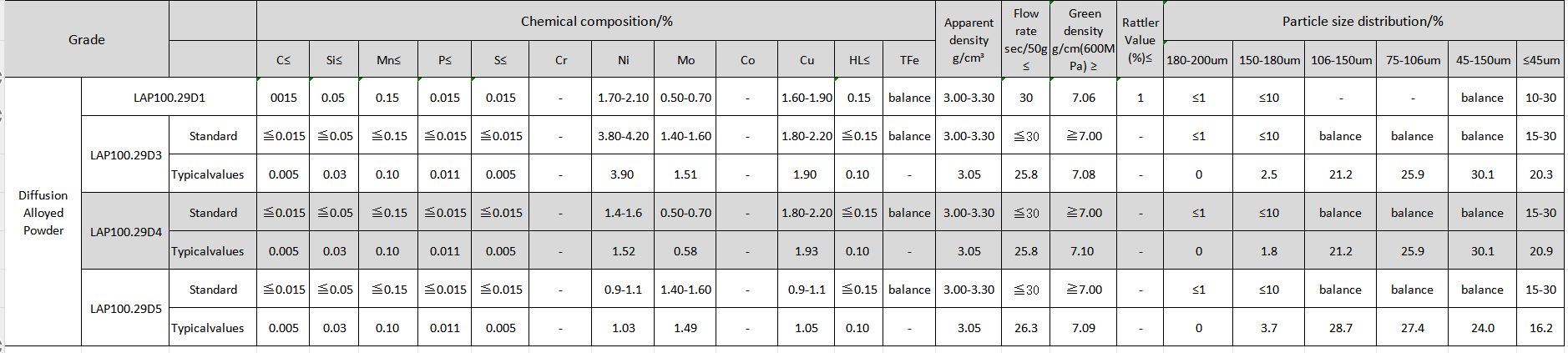

Specifications of other diffusion alloyed powders
Product Packing
25kg/bag, 1000kg/bag, the package can be customized by buyer's requirements.
Application
This type of metal powder can be used for the material of powder metallurgy sinter component parts.
