LAP100.29D1: Add Ni(1.70-2.10%)and Cu(1.60-1.90%)in to the base powder(LAP100.29Mo1)mix uniformly. It enables the powder has high compressibility, stable dimensional change rate and good sintering performance. It is suitable for production of high strength materials.
Advantages：
·The powder has high compressibility and high strength.
·By adding superfine Cu powder improves powders uniformity and stability.
·Suitable for production of high strength and high dimensional precision high quality PM parts.
Specification
Chemical Properties（%） | Unit | Specification | |
| Min | Max | ||
| C | % | 0.015 | |
| Si | % | 0.05 | |
| Mn | % | 0.15 | |
| P | % | 0.015 | |
| S | % | 0.015 | |
Ni | % | 1.70 | 2.10 |
| Mo | % | 0.50 | 0.70 |
| Cu | % | 1.60 | 1.90 |
| H2-Loss | % | 0.15 | |
| Physical Properties | |||
| Apparent density | g/cm3 | 3.00 | 3.30 |
| Flow rate | s/50g | 30 | |
| Green density 600Mpa | g/cm3 | 7.06 | |
| Particle size distribution（%） | |||
| 180-212um | % | 1 | |
| 150-180um | % | 10 | |
| 45-150um | % | ||
| -45um | % | 10 | 30 |

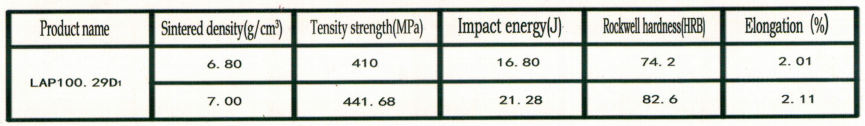

Properties
LAP100.29D1+0.3%C+0.6%Zn-st, condition: temperature1120℃, sintering time 30min.
Specifications of other diffusion alloyed powders

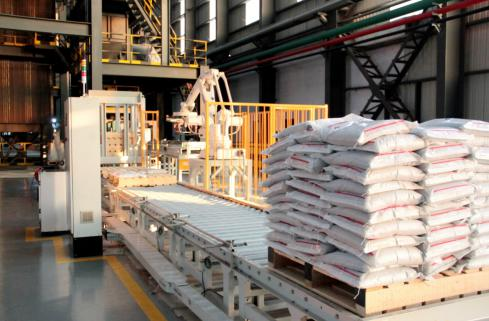

Product Packing
25kg/bag, 1000kg/bag, the package can be customized by buyer's requirements.
Application
This type of metal powder can be used for the material of powder metallurgy sinter component parts.
